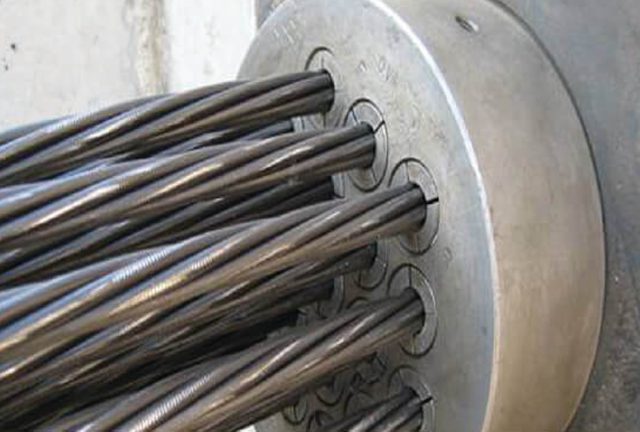

Anchorage System
Inquire About This Product
Need technical datasheets, BUET lab test reports, or wholesale delivery estimates?
Product Overview

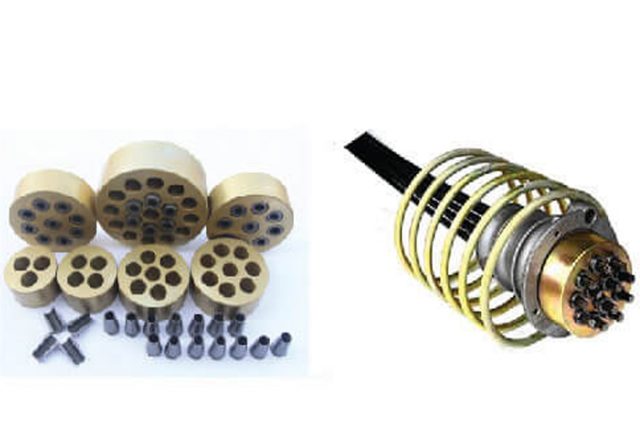

Post-tensioning anchor heads, wedges, bearing plates, and trumpets for securely locking prestressed cables under high tension.
Technical Specifications
| Strand Capacity | 1 to 55 strands per anchor head (12.7mm / 15.24mm) |
|---|---|
| Wedge Material | Carburized High Alloy Carbon Steel with Micro-teeth |
| Anchor Head Material | High-strength 40Cr Alloy Steel |
| Anchor Efficiency | ≥ 95% of strand ultimate tensile strength |
Detailed Engineering Description

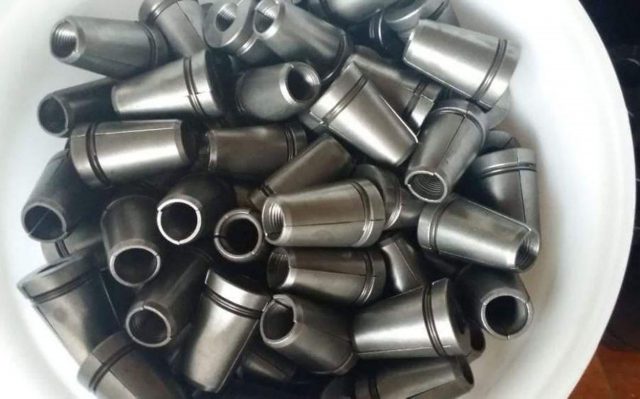

Our post-tensioning anchorage systems provide the critical transfer of immense tensile force from prestressing strands directly into structural concrete girders and bridge decks. Includes multi-strand anchor heads, precision heat-treated gripping wedges, ductile iron bearing plates, and protection grout caps.
